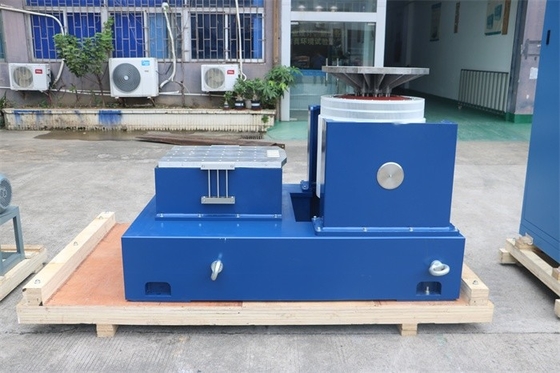

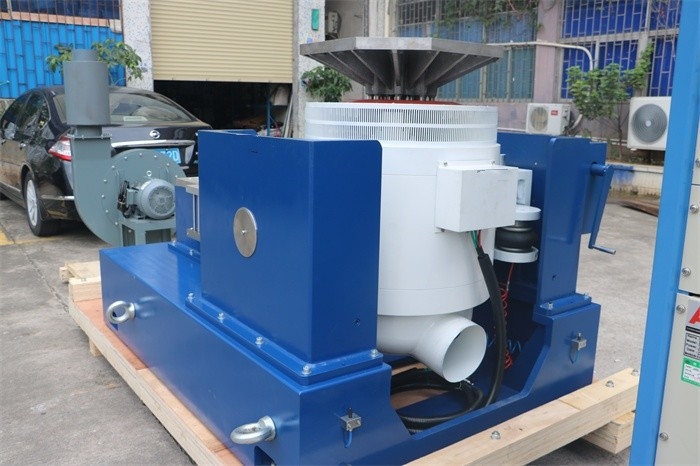

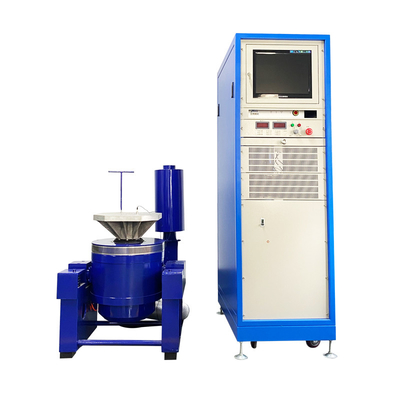

Battery Vibration Testing Equipment For 8gn Vibration Test UN 38.3 Standard

Battery Vibration Testing Equipment For 8gn Vibration Test UN 38.3 Standard

Markenbezeichnung: PRECISION
Modellnummer: VTS-70
MOQ: 1
Preis: $6000
Zahlungsbedingungen: T/T
Versorgungsfähigkeit: 100 pro Monat
Ausführliche Information
Herkunftsort:
China
Zertifizierung:
CE
Personalisierte Unterstützung:
OEM und ODM
SINE-KRAFT:
10KN
gelegentliche Kraft:
10KN
Schlagkraft:
20 kN
Frequenzbereich:
1 bis 3000 Hz
Verlagerung:
mit einer Breite von 50 mm
Geschwindigkeit:
2.0
Größe der Tabelle:
500x500 mm
Verpackung Informationen:
Standardverpackung für die Ausfuhr
Versorgungsmaterial-Fähigkeit:
100 pro Monat
Hervorheben:

Battery Vibration Testing Equipment

,

8gn Vibration Testing Equipment

,

UN 38.3 Vibration Testing Equipment

Produkt-Beschreibung

Battery Vibration Testing Equipment for 8gn Vibration Test UN 38.3 Standard

Our battery vibration testing equipment is specifically engineered to perform the stringent 8gn vibration test as required by the UN 38.3 standard for lithium-ion battery packs and cells. Designed for precision and reliability, these systems accurately simulate the demanding vibrational stresses encountered during transportation, ensuring the safety, mechanical integrity, and regulatory compliance of your battery products. Our equipment provides the precise control and accurate replication of the UN 38.3 vibration profile, guaranteeing your batteries meet critical international safety requirements for transport.

Key Features

  • UN 38.3 Compliance: Fully configured to execute the specific Test 3: Vibration profile of the UN 38.3 Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, including the specified 8gn acceleration.
  • High Acceleration Capability: Delivers the necessary 8gn peak acceleration to rigorously test various sizes and weights of lithium-ion battery packs and cells.
  • Precise Electrodynamic Shaker: Utilizes advanced electrodynamic shaker technology for accurate, repeatable, and controlled sine sweep vibration across the specified frequency range (7 Hz to 200 Hz).
  • Advanced Digital Control System: Ensures precise control over frequency, amplitude, and acceleration, allowing for flawless execution of the UN 38.3 profile.
  • Comprehensive Data Acquisition: Integrated systems for real-time monitoring and recording of critical test parameters such as acceleration and displacement, essential for compliance documentation.
  • Robust and Reliable Design: Built with high-quality components for continuous operation and long-term durability in demanding safety testing environments.
  • Customizable Test Fixtures: Options for designing and manufacturing application-specific fixtures to securely mount diverse battery configurations, ensuring proper vibration transmission and safety.
  • Integrated Safety Features: Incorporates essential safety interlocks, emergency stops, and protection mechanisms crucial for the safe handling and testing of high-voltage battery packs.

Applications

  • Lithium-Ion Battery Safety Certification: Primary application for achieving UN 38.3 regulatory approval for transportation.
  • Electric Vehicle (EV) Battery Testing: Essential for qualifying battery packs and modules for automotive safety and durability.
  • Portable Electronic Device Batteries: Validating cells and battery packs for laptops, power tools, and other consumer electronics.
  • Energy Storage System (ESS) Batteries: Ensuring the transportation safety of stationary and grid-scale battery units.
  • Quality Assurance: Routine testing for production batches to maintain consistent safety standards.
  • Research & Development: Investigating the vibrational robustness of new battery designs and chemistries.

Benefits

  • Achieve UN 38.3 Certification: Facilitates critical regulatory approval for the safe transport of lithium-ion batteries globally.
  • Ensures Transportation Safety: Significantly reduces the risk of incidents during shipping by identifying vibrational weaknesses.
  • Validates Battery Design: Confirms the mechanical integrity and electrical stability of battery products under transport stresses.
  • Reduces Risk and Liability: Helps mitigate costly recalls, fines, and reputational damage associated with non-compliant batteries.
  • Provides Accurate & Repeatable Data: Generates reliable test results essential for compliance reports and internal validation.
  • Enhances Product Trust: Demonstrates a strong commitment to safety and quality in a competitive market.

Technical Specifications:



Rated Sine/ Random/ Shock Force 1,100 kgf/1.100 kgf/2200 kgf Armature Mass 13 kg
Frequency Range 5-3500 Hz Inserts Size (Standard) M10
Max./Continuous Displacement p-p 51 mm/51 mm Load Attachment Points (Standard) 25
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 85/60g Max. Vertical Load Support 300 kg
Armature Diameter 335 mm Stray field @152 mm above table ≤lmT (10 gauss)
Fundamental Resonance Frequency 3,000 Hz (nom) ±5% Dimension LxWxH 940 mmx715 mm* 780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg



Are you ready to ensure your battery products meet essential international safety standards? Contact our experts today to discuss your UN 38.3 8gn battery vibration test requirements and discover the ideal electrodynamic vibration test machine solution.
